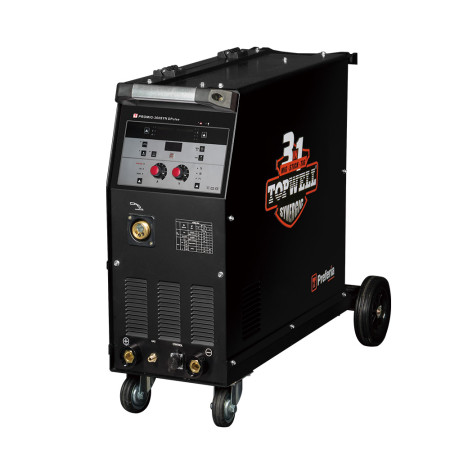

PROMIG-250SYN DPulse Synergy Pulse and Double Pulse MIG Welder
PROMIG-250SYN DPulse Synergy Pulse and Double Pulse MIG Welder
Để biết thêm thông tin
DETAILS
Synergy, Pulse, Double Pulse MIG
PROMIG-250SYN DPulse
Compact & Heavy Duty - 250A @ 60% Duty cycle, suitable for workshop or light industrial applications.
Synergic Control - Set weld procedures with one control. Just easily takes 3 Steps to achieve weld perfection.
Pulse MIG Process - Welds 4XXX and 5XXX series Aluminum and Mild Steel for superior quality welding.
Double Pulse MIG Process - Delivers a staked dime appearance when welding mild steel and aluminum without swinging.
Advanced Performance For Mild Steel - Delivers less spatters, less rework than before.
Improved Operation Process & Controls - Initial Arc control, Burn Back control, Arc Length control, Dynamic control, these make an easier operation and handling for welding.
Professional 4-Rollers Wire Feeder - Four-rollers drive systems deliver theelectrode to the welding torch. It provides a stable wire speed and is popular for industrial applications.
Pulse MIG
It minimizes warping and burnthrough on thin materials, not only for Aluminum, but also for Mild Steel. Moreover, it delivers ultra low spatters which is outstanding for Mild Steel welding.
Less Spatters For Mild Steel
ProMIG-250SYN DPulse is not just an aluminum welding expert, it also has nice results on M.S welding. With the advanced welding curves from Master's JOBS-LIST(short-circuit transfer), there is ultra-low spatters while welding M.S and save your time for secondary work.
Double Pulse MIG
No need to swing, You can easily get a cosmetically pleasing weld seam, with significantly lower and more controller heat input into the workpiece. It results in much lower distortion and less rework for Mild steel and Aluminum sheets.
By Double Pulse process, the heat input of arc is alternating, effectively reducing the heat input of base metal. It reduces the occurrence of welding defects such as crack. Welding quality is comparable to TIG process.
True Synergy With Jobs-list
The Job-lists display is easily and intuitively controlled through its graphical user interface.We assembled the perfect welding curve in every Job-No. for highly efficient multi-process welding of carbon steels and aluminum alloys. Operation is easier than ever before.
3 Steps To Start Perfect Welding
1. Regarding to the Job-List, set Job Number
2. Regarding to the base metal thickness,set welding current
| 3. Go for welding! |
VIDEO
SPECIFICATIONS
Machines
|
Product Name
|
ProMIG-250SYN DPulse
|
|
Machines Processes
|
Stick (SMAW) Flux-Cored (FCAW) MIG (GMAW) Pulsed MIG (GMAW-P) Double Pulsed MIG (GMAW-DP) |
|
Wire Feeder
|
4-Rollers
|
Product Weights & Dimensions
|
Dimensions(L*W*H)
|
790x250x650mm
|
|
Net Weight
|
32kg
|
Basic Specification
|
Input Voltage
|
1PH ~ 230V ±15%/3PH ~ 400V ±15%
|
|
Input Power
|
11.72KVA
|
|
Output Range
|
MIG: 10A/14.5V ~250A/26.5V MMA: 20A/20.8V~250A/30V |
|
Rated Output(40℃) 100%
|
MIG: 250A/26.5V MMA: 250A/30V |
Polarity | DC |
YOU MAY ALSO NEED
Push-Pull Gun
Wire Roller Kit
